SORACOM IoT SIM データシート

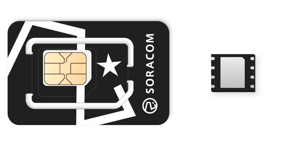

製品一覧

Product Name Product code Form Factor Application
SORACOM Air SIM card (plan01s) SG001 3-in-1 (2FF/3FF/4FF) USIM/SIM
SORACOM Air eco SIM card (planX3) SGM01 3-in-1 (2FF/3FF/4FF) USIM/SIM
SORACOM Air eco SIM card (planP1) SA001 3-in-1 (2FF/3FF/4FF) USIM/SIM
SORACOM Air eco SIM card (plan-K2) SJ001 3-in-1 (2FF/3FF/4FF) USIM/SIM
SORACOM Air embedded SIM Commercial grade (plan01s) SGECL01 MFF2 (Commercial grade) USIM/SIM
SORACOM Air embedded SIM Industrial grade (plan01s) SGEIL01 MFF2 (Industry grade) USIM/SIM
SORACOM Air embedded SIM Industrial grade (planX3) SGEILM1 MFF2 (Industry grade) USIM/SIM
SORACOM Air embedded SIM Industrial grade (plan-K2) SJEIL01 MFF2 (Industry grade) USIM/SIM

ソフトウェア・ハードウェア特性

SORACOM Air SIM card (plan01s) – SG001

Software Features
  • Java Card™ 3.0.1
  • 3GPP Release 11
  • Telecom Applications
    • USIM
    • SIM
  • OTA
    • OTA over SMS (SCP80)
    • OTA over HTTPs: Global Platform 2.2 amendment B (SCP81)
  • Java Card™ Cryptographic APIs
  • CRC16, CRC32
  • DES, 3DES
  • AES 128 bits, 256 bits
  • SIM applets
    • SORACOM Subscription Container applet
    • SORACOM Local Information applet
  • Low Power
    • Suspend UICC during eDRX/PSM: enabled
    		•
    Hardware Features
    • Supply voltage 1.62V to 3.3V (Class B/C)
    • NVM (non volatile memory) available 128 Kbytes
    • Operating Temperature -25°C to +85°C
    • M2M qualification (ETSI 102.671): NA
    • Data retention:  Up to 10 years at 85°C
    • ROHS compliance

    SORACOM Air eco SIM card (planX3) – SGM01

    Software Features
    • Java Card™ 3.0.2
    • 3GPP Release 11
    • Telecom Applications
      • USIM
      • SIM
    • OTA
      • OTA over SMS (SCP80)
      • OTA over HTTPs: Global Platform 2.2 amendment B (SCP81)
    • Java Card™ Cryptographic APIs
    • CRC16, CRC32
    • DES, 3DES
    • AES 128 bits
    • SIM applets
      • SORACOM Subscription Container applet
      • SORACOM Local Information applet
    • Low Power
      • Suspend UICC during eDRX/PSM: enabled
    Hardware Features
    • Supply voltage 1.62V to 5.5V (Class A/B/C)
    • NVM (non volatile memory) available 128 Kbytes
    • Operating Temperature -25°C to +85°C
    • Data retention: Up to 10 years at 85°C
    • ROHS compliance
    • Quarter Size, Plastic reduced eco version
    • Country of manufacture: China

    SORACOM Air eco SIM card (planP1) – SA001

    Software Features
    • Java Card™ 3.0.2
    • 3GPP Release 12
    • Telecom Applications
      • USIM
      • SIM
    • OTA
      • OTA over SMS (SCP80)
      • OTA over HTTPs: Global Platform 2.2 amendment B (SCP81)
    • Java Card™ Cryptographic APIs
    • CRC16, CRC32
    • DES, 3DES
    • AES 128 bits
    • SIM applets
      • SORACOM Subscription Container applet
      • SORACOM Local Information applet
    • Low Power
      • Suspend UICC during eDRX/PSM: enabled
    Hardware Features
    • Supply voltage 1.62V to 5.5V (Class A/B/C)
    • NVM (non volatile memory) available 128 Kbytes
    • Operating Temperature -25°C to +85°C
    • Data retention: Up to 10 years
    • RoHS compliance
    • Quarter Size, Plastic reduced eco version
    • Country of manufacture: China

    SORACOM Air eco SIM card (plan-K2) – SJ001

    Software Features
    • Java Card™ 3.0.4
    • 3GPP Release 14
    • Telecom Applications
      • USIM
      • SIM
    • OTA
      • OTA over SMS (SCP80)
      • OTA over HTTPs: Global Platform 2.2 amendment B (SCP81)
    • Java Card™ Cryptographic APIs
    • CRC16, CRC32
    • DES, 3DES
    • AES 128 bits
    • SIM applets
      • SORACOM Subscription Container applet
      • SORACOM Local Information applet
    • Low Power
      • Suspend UICC during eDRX/PSM: enabled
      • Resume UICC: enabled
    Hardware Features
    • Supply voltage 1.62V to 5.5V (Class A/B/C)
    • NVM (non volatile memory) available 128 Kbytes
    • Operating Temperature -25°C to +85°C
    • Data retention: Up to 10 years
    • ROHS compliance
    • Quarter Size, Plastic reduced eco version
    • Country of manufacture: China

    SORACOM Air embedded SIM Commercial grade (plan01s) – SGECL01

    Software Features
    • Java Card™ 3.0.2
    • 3GPP Release 12
    • Telecom Applications
      • USIM
      • SIM
    • OTA
      •  OTA over SMS (SCP80)
      •  OTA over HTTPs: Global Platform 2.2 amendment B (SCP81)
    • Java Card™ Cryptographic APIs
      • CRC16, CRC32
      • DES, 3DES
      • AES 128 bits, 256 bits
    • SIM applets
      • SORACOM Subscription Container applet
      • SORACOM Local Information applet
    • Low Power
      • Suspend UICC during eDRX/PSM: enabled
    Hardware Features
    • Supply voltage 1.62V to 3.3V (Class B/C)
    • Temperature Range
      • Operating -25°C to +85°C
    • Data Retention:
      • Up to 10 years at 85°C
    • NVM Endurance
      • Up to 100,000 Cycles/page @ 85°C
    • ESD Protection > 4kv
    • Ruggedized Form Factor MFF2: TB-MA-HA-CA-VA-SA-RA-UB
    • ROHS compliance

    SORACOM Air embedded SIM Industrial grade (plan01s) – SGEIL01

    Software Features
    • Java Card™ 3.0.2
    • 3GPP Release 11
    • Telecom Applications
      • USIM
      • SIM
    • OTA
      •  OTA over SMS (SCP80)
      •  OTA over HTTPs: Global Platform 2.2 amendment B (SCP81)
    • Java Card™ Cryptographic APIs
      • CRC16, CRC32
      • DES, 3DES
      • AES 128 bits, 256 bits
    • SIM applets
      • SORACOM Subscription Container applet
      • SORACOM Local Information applet
    • Low Power
      • Suspend UICC during eDRX/PSM: enabled
    Hardware Features
    • Supply voltage 1.62V to 3.3V (Class B/C)
    • Temperature Range
      • Operating -40°C to +105°C
    • Data Retention:
      • Up to 15 years at 85°C, 10 years at 105°C
    • NVM Endurance
      • Up to 500,000 Cycles/page @ 105°C
    • ESD Protection > 4kv
    • Ruggedized Form Factor MFF2: TB-MA-HA-CA-VA-SA-RA-UB
    • ROHS compliance

    SORACOM Air embedded SIM Industrial grade (planX3) – SGEILM1

    Software Features
    • Java Card™ 3.0.2
    • 3GPP Release 11
    • Telecom Applications
      • USIM
      • SIM
    • OTA
      • OTA over SMS (SCP80)
      • OTA over HTTPs: Global Platform 2.2 amendment B (SCP81)
    • Java Card™ Cryptographic APIs
      • CRC16, CRC32
      • DES, 3DES
      • AES 128 bits, 256 bits
    • SIM applets
      • SORACOM Subscription Container applet
      • SORACOM Local Information applet
    • Low Power
      • Suspend UICC during eDRX/PSM: enabled
    Hardware Features
    • Supply voltage 1.62V to 5.5V (Class A/B/C)
    • Temperature Range
      • Operating -40°C to +105°C
    • Data Retention:
      • 10 years at 85°C, Up to 10 years at 105°C
    • NVM Endurance
      • Minimum 500,000 Cycles/page @ 85°C
    • ESD Protection > 4kv
    • Ruggedized Form Factor MFF2 (ETSI TS 102 671 compliancy): TB-MA-HA-CA-VA-SA-RA-UB
    • ROHS compliance
    • Country of manufacture: China

    SORACOM Air embedded SIM Industrial grade (plan-K2) – SJEIL01

    Software Features
    • Java Card™ 3.0.4
    • 3GPP Release 14
    • Telecom Applications
      • USIM
      • SIM
    • OTA
      • OTA over SMS (SCP80)
      • OTA over HTTPs: Global Platform 2.2 amendment B (SCP81)
    • Java Card™ Cryptographic APIs
      • CRC16, CRC32
      • DES, 3DES
      • AES 128 bits, 256 bits
    • SIM applets
      • SORACOM Subscription Container applet
      • SORACOM Local Information applet
    • Low Power
      • Suspend UICC during eDRX/PSM: enabled
    Hardware Features
    • Supply voltage 1.62V to 5.5V (Class A/B/C)
    • Temperature Range
      • Operating -40°C to +105°C
    • Data Retention:
      • Up to 15 years at 85°C
    • NVM Endurance
      • Up to 1,000,000 Cycles on 10 sector
    • ESD Protection > 6kv
    • Ruggedized Form Factor MFF2 (ETSI TS 102 671 compliancy): TB-MA-HA-CC-SA-VA-RC-UC
    • ROHS compliance
    • Country of manufacture: China

    embedded SIM (MFF2) パッケージング仕様

    当社 embedded SIM(チップ型)はETSI TS 102.671準拠のMFF2形状です。

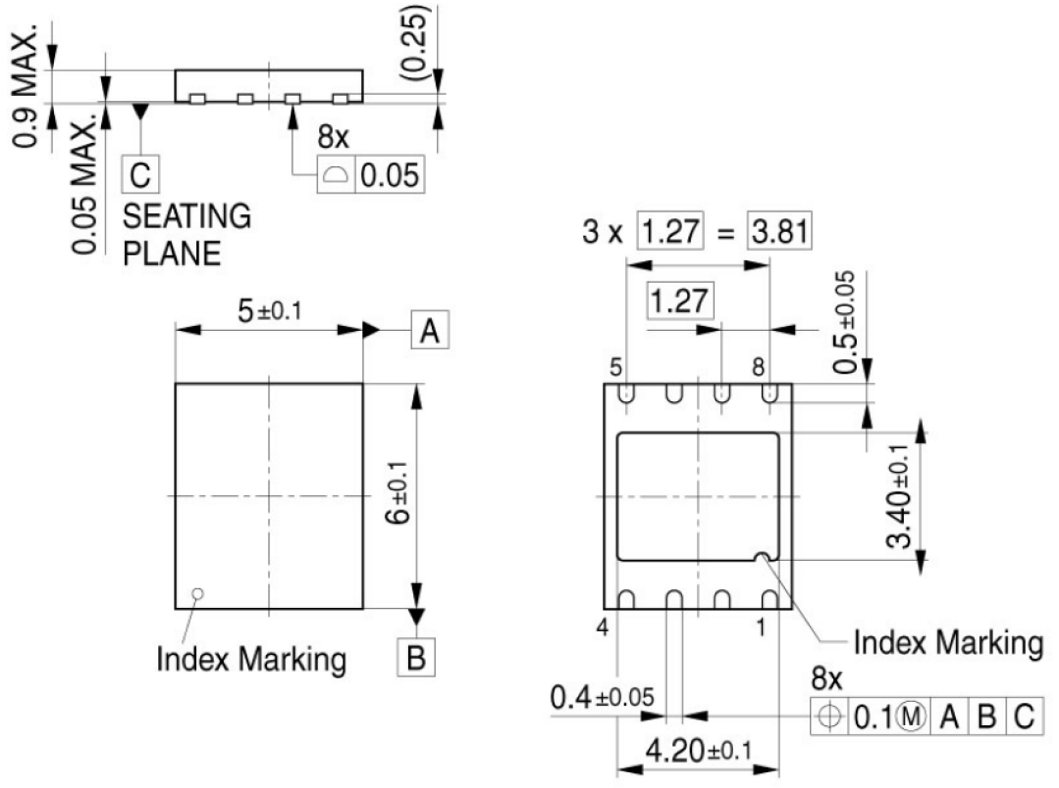

    embedded SIM (MFF2) パッケージ仕様

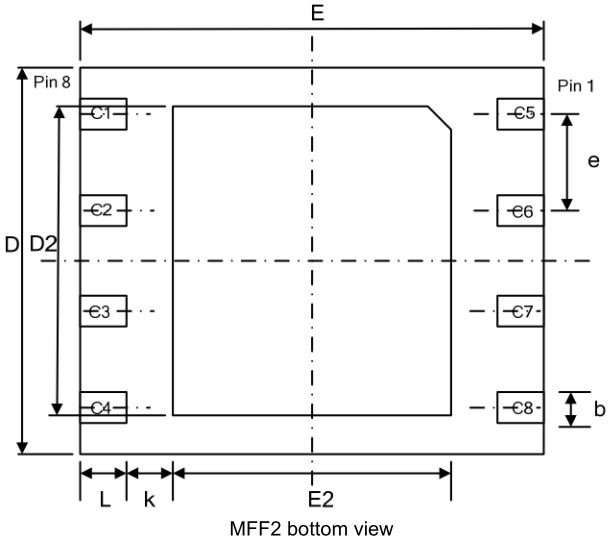

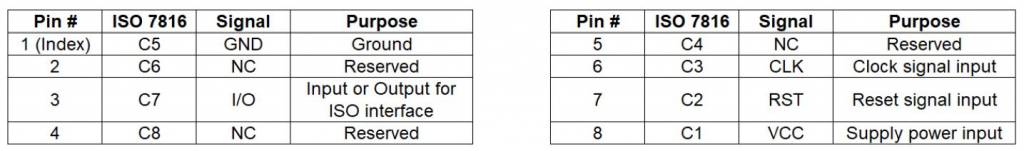

    embedded SIM (MFF2) PIN仕様

    注意事項

    • PIN番号とISO 7816-3, ETSI TS 102.221で規定されるContact番号は上記のようなマッピングになります。接続間違いにご注意下さい。
    • C4/C8は利用しません。利用しない接点については他の領域から絶縁状態を維持して下さい。
